Engine
The engine chapter focuses on inspecting, repairing and servicing the OM352A engine and its supporting systems while access was available during the restoration. Although the engine appeared to operate well, every accessible component was inspected to verify its condition, identify defects and establish a known mechanical baseline.
Chapter 5 - Engine
The engine chapter documents the inspection, assessment and refurbishment of the Mercedes-Benz OM352A engine and its supporting systems while access was available during the restoration. The objective was not to perform a complete engine rebuild, but to establish a known mechanical baseline by systematically inspecting every accessible component and rectifying any defects identified.
Although the engine was reported to have undergone significant work prior to purchase, the restoration was approached without assumptions. Every major component was assessed on its own condition rather than relying on previous history or verbal advice. Wherever possible, components were measured against specification, function tested and inspected for wear before decisions were made regarding repair or replacement.
This chapter covers the lubrication system, turbocharger, engine ancillaries. We touch on the cooling system, clutch assembly and PTO interface. These are covered in detail in subsequent chapters.
Initial Assessment
A general visual inspection was completed to identify evidence of oil leaks, coolant leaks, damaged wiring, loose fasteners and previous repairs. This initial assessment established a baseline and helped prioritise subsequent inspection activities.
Cooling System
The cooling system was inspected to determine both its operating efficiency and long-term reliability.
Radiator performance was initially assessed by measuring the temperature differential between the upper and lower tanks during engine operation. The measured temperature drop indicated that coolant flow through the radiator remained effective.
To eliminate uncertainty surrounding the cooling system, the radiator, thermostat, header tank and associated pipework were removed for detailed inspection. The engine block and radiator were reverse flushed multiple times to remove accumulated sediment and residual contamination before new coolant was introduced.
The thermostat was independently tested in heated water and confirmed to begin opening at approximately 71°C, consistent with its intended operating specification. The radiator was cleaned, pressure tested and reinstalled together with refurbished pipework, new hose clamps and restored mounting hardware.
A second hand radiator was sourced and fitted. Due to the external and unknown internal corrosion of the original radiator the decision was made to replace. The second hand radiator was sent for testing and returned in operable usable condition.
Turbocharger
The turbocharger was inspected while access was available to determine its mechanical condition before reassembly.
Both the compressor and turbine housings were examined for evidence of oil leakage, foreign object damage and blade contact. Shaft movement was measured and compared against service limits, confirming that axial and radial clearances remained within acceptable tolerances. No evidence of deterioration or housing contact was identified.
As the inspection found no indication of abnormal wear or impending failure, the turbocharger was retained for continued service without overhaul.
*Image Placeholder – Turbocharger inspection*
Ancillary Components
With major cooling components removed, access to the front of the engine significantly improved, allowing refurbishment of numerous ancillary systems.
The air intake assembly was dismantled, cleaned and resealed before refinishing. Cooling fan components, pulleys, brackets and mounting hardware were derusted, sandblasted where required, treated for corrosion and repainted. Engine bay wiring was inspected, repaired and rerouted to improve protection from heat and abrasion.
Numerous brackets, threaded holes and electrical earth mounting points were cleaned using taps and thread chasers to ensure correct bolt engagement during reassembly. Corrosion identified throughout the engine bay was treated before protective coatings were applied.
Lubrication
Prior to replacing lubricants, oil samples were collected from the engine together with the gearbox, PTO, differentials, portal hubs and power steering system for laboratory analysis.
Oil analysis is a valuable predictive maintenance tool that provides insight into the internal condition of mechanical components by identifying wear metals, contamination and lubricant degradation before obvious failures occur. However, oil sampling should never be used in isolation. The best maintenance decisions are made by combining oil analysis with routine inspections, performance monitoring, visual analysis, temperature trends and operational observations by qualified tradespeople to build a complete picture of equipment health.
The below sample of my engine is in great shape. As for the silicon, well its not a concern for me at this stage. It can come from various sources including inferior sampling techniques like a dirty sample tube. The course of action here is to trend the silicon over time to establish an issue or not.
Following completion of the inspections, every lubricant throughout the driveline was drained and replaced to establish a known maintenance baseline. This provides a reliable reference point for future oil analysis trending and ongoing condition monitoring.
---
Clutch and Flywheel
Removal of the PTO housing provided access to inspect the clutch assembly and associated driveline components.

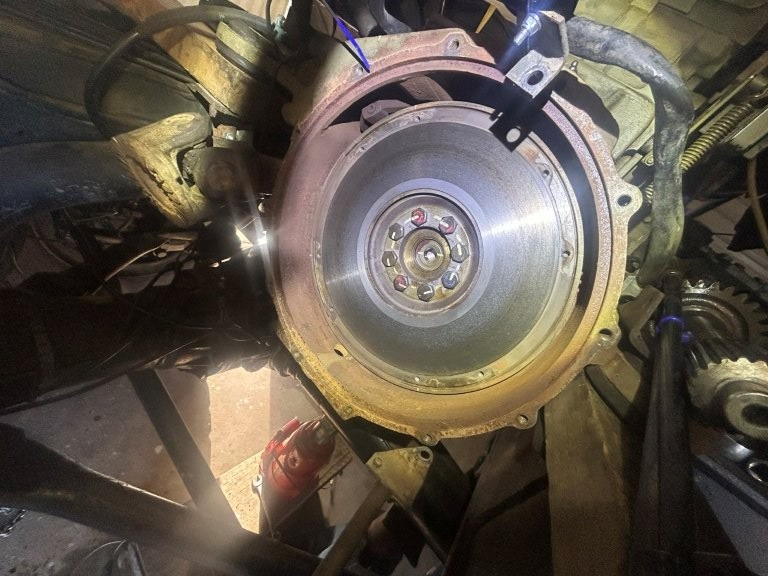

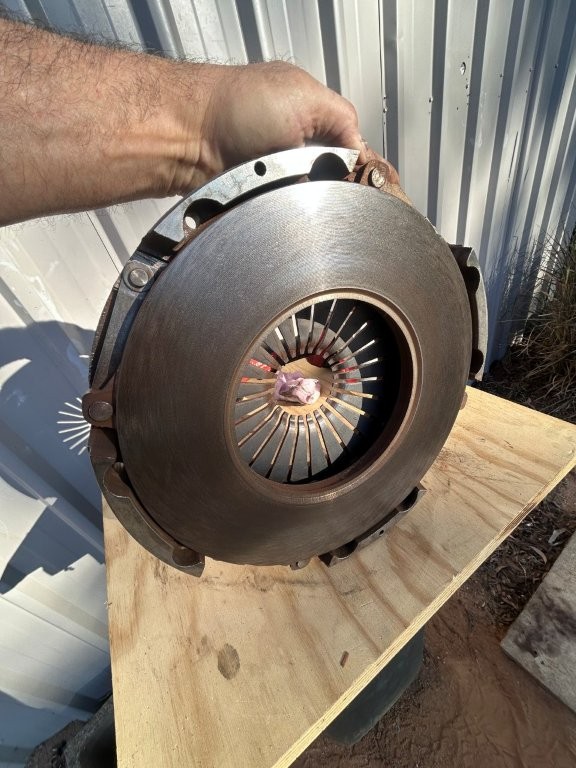

Inspection of the pressure plate, flywheel and clutch friction disc produced one of the most positive findings of the restoration. The pressure plate surfaces showed no evidence of scoring, heat damage or excessive wear, while the flywheel displayed machining marks consistent with previous resurfacing.
The clutch friction material measured approximately 3.5 mm on each side.
Anyone that knows there specs, knows this is bang on.
The release bearing, clutch fork and associated operating components also displayed minimal wear and remained suitable for continued service after cleaning and relubrication with molybdenum grease.
Based on the measured condition of these components, replacement was considered unnecessary.
Outcome
Inspection of the engine and its supporting systems confirmed that the OM352A remained in sound mechanical condition and did not require major internal repairs during this stage of the restoration.
The systematic inspection process verified the condition of the cooling system, turbocharger, clutch assembly, PTO interface and engine ancillaries while establishing a known maintenance baseline through complete fluid replacement and condition monitoring.
Perhaps the most significant outcome was not the replacement of parts, but the confidence gained through verification. By measuring critical components, testing system performance and refurbishing serviceable assemblies rather than replacing them unnecessarily, the engine now returns to service with its condition understood rather than assumed.
The inspection reinforced one of the guiding principles adopted throughout the entire restoration: inspect first, measure wherever possible, make decisions based on evidence, and replace components only when their condition justifies it.
After 10–20 hours of operation, the valve clearances will be checked and adjusted to specification.
Key Takeaways
Verify component condition through inspection and measurement rather than assumptions. Confirming the condition of the cooling system, turbocharger and clutch eliminated unnecessary replacement of serviceable components.
Simple diagnostic testing can quickly identify the true source of a fault. Temperature measurements confirmed the engine was operating normally, avoiding unnecessary investigation into an overheating issue that was ultimately traced to instrumentation.
Oil analysis should be used as a condition monitoring tool, not a stand-alone diagnosis. Laboratory results must always be supported by physical inspection, maintenance history and operating condition before conclusions are drawn.
Take advantage of improved access during dismantling. Components such as the radiator, turbocharger, engine ancillaries and clutch are far easier to inspect and service while surrounding equipment has been removed.
Thorough cleaning is an essential part of any inspection. Removing dirt, corrosion and old sealants from components, threads and mounting faces often revealed their true condition and improved the quality of reassembly.
Measure first, replace only when necessary. Confirming components remained within specification reduced unnecessary expenditure while retaining original parts that were still capable of providing reliable service.
